All action truing and blueprinting is done in house using dedicated single point tooling. The action is mounted in our specially designed jig that allows us to dial in the bolt raceway. Once this is done it allows us to make truing cuts to the action face and bolt lug abutments. The same process is then carried out on the rifles bolt. When combined with a new barrel it helps maximise the rifles accuracy potential. We can blueprint most manufacturers rifle actions, please feel free to contact us to discuss your requirements.

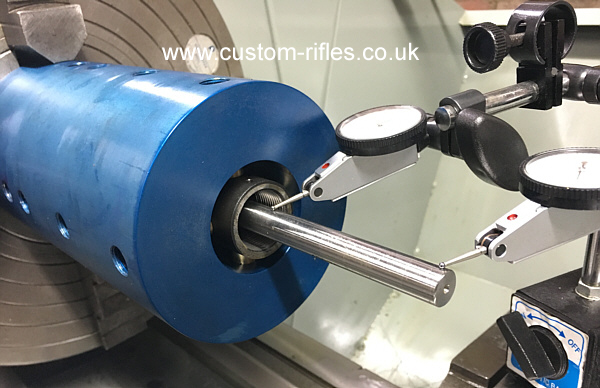

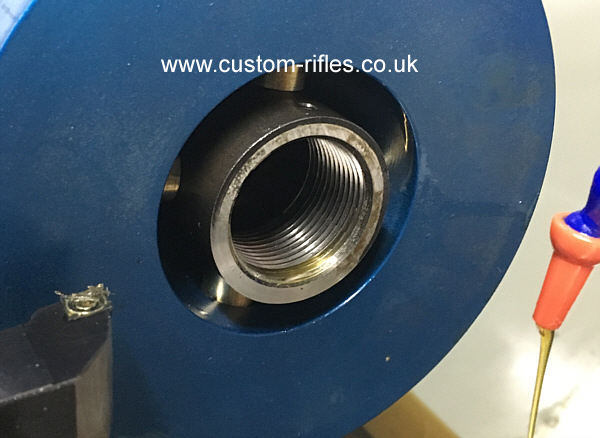

The first part of the action truing service is to mount the action in to our in house custom made truing jig. Once the action is dialled in to within 0.0002" - 0.0003" we can begin the process of making the entire action true.

Please feel free to call us to discuss your requirements. We are more than happy to answer any questions.

The text below is for search engine purposes only.

custom action blueprinting service for - AR 15, Remington 700, Howa 1500, Sako, Tikka, CZ 452, Ruger 10-22.

We are based in Edlesborough which is situated on the Bedfordshire,  Buckinghamshire and Hertfordshire borders. Within easy access of the M1 Motorway and the M25. Beds, Bucks, Herts. Leicestershire, Northamptonshire, Northants, Oxfordshire, Oxon. Dunstable, Luton, Milton Keynes, MK, London, North London,  East London, West london, Watford. St, Albans, Hertford, Northampton. Oxford, Cambridge Cambridgeshire. Hemel Hempstead, Tring, Berkhamstead.

Action Truing and Action Blueprinting Service

For Field, Stalking and Range Rifles

Action Truing Prices Start From: £150

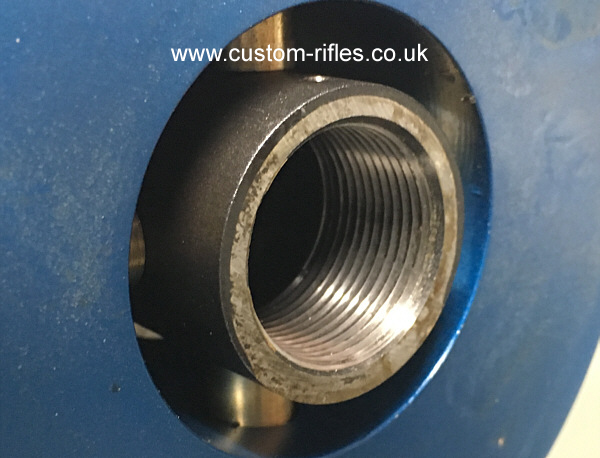

A close up shot showing the condition of the action face before any truing cuts. you can clearly see that the barrel has not been perfectly seating from the factory

This picture shows the action face after the first truing cut. As you can see the action face is clearly out of true

Showing the face of the action trued. This particular Remington 700 action took a total cut of 0.004" to bring the face in to true.

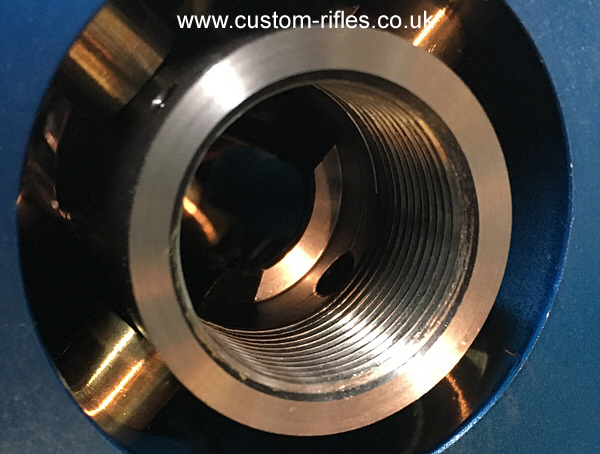

If you look closely inside the action you will see that the bolt lug abutments are now cut and trued to the face of the action.

Home - Action Truing - Barrel Threading - Barrel Free Floating - Re-barreling - Bolt Knobs - Bolt fluting - Gun smithing - RFD Transfer - Products - Sell your rifle - Customer Reviews - Gallery - Contact us

All content on this web site © Custom-Rifles.co.uk

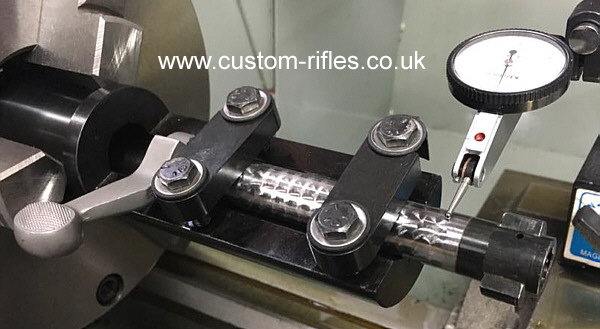

The next stage is to mount the bolt in to the bolt truing jig and dial it in.

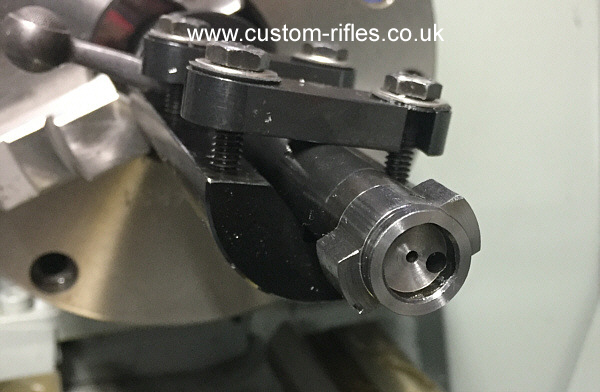

The bolt faces are now cut until they are true.

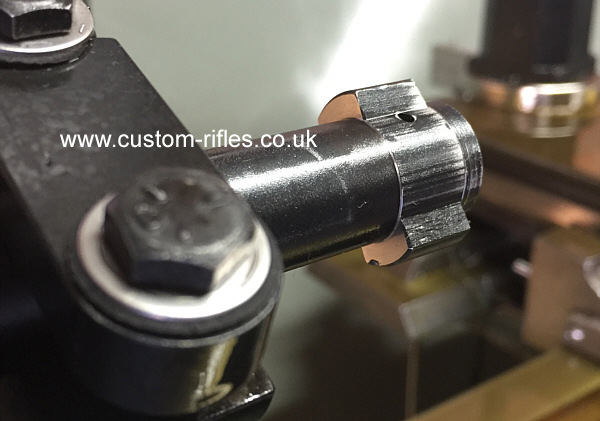

The final part of the bolt truing service is to cut the rear lugs until true.

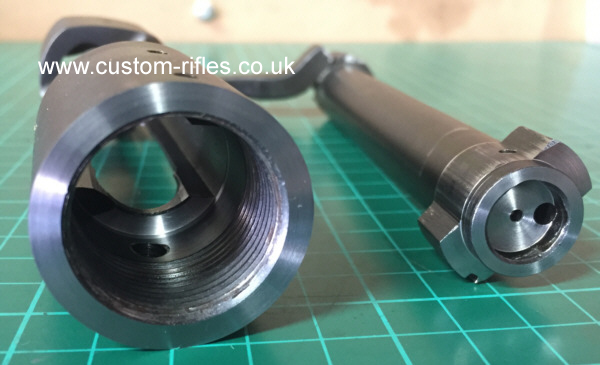

Both the action and bolt are now machined true.
